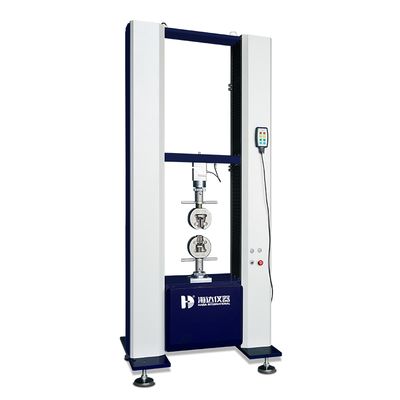

Electronic Hounsfield Universal Testing Machines Force Pull Testing Machine for Tensile Strength Measurement

Electronic Hounsfield Universal Testing Machines Force Pull Testing Machine for Tensile Strength Measurement
Electronic Hounsfield Universal Testing Machines Force Pull Testing Machine for Tensile Strength Measurement Electronic Hounsfield Universal Testing Machines Force Pull Testing Machine for Tensile Strength Measurement Electronic Hounsfield Universal Testing Machines Force Pull Testing Machine for Tensile Strength Measurement Electronic Hounsfield Universal Testing Machines Force Pull Testing Machine for Tensile Strength Measurement

Grote Afbeelding :  Electronic Hounsfield Universal Testing Machines Force Pull Testing Machine for Tensile Strength Measurement

Productdetails:
Plaats van herkomst: China
Merknaam: Haida
Certificering: CE,,ISO
Modelnummer: HD-B615BS-S
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 set
Prijs: Onderhandelbaar
Verpakking Details: Elke set beschermd met harsvezels en PP -film en vervolgens in een sterke houten behuizing geplaatst
Levertijd: 20 dagen na bestelling bevestigd
Betalingscondities: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Levering vermogen: 300 sets per maand

Electronic Hounsfield Universal Testing Machines Force Pull Testing Machine for Tensile Strength Measurement

beschrijving
Oplossing: 1/10.000 Nauwkeurigheid: ±1%
Testgebiedsmateriaal: Sus304 roestvrij staal De nauwkeurigheid van de verlenging: 0,001 mm
Stroom: 1∮, AC220V, 50Hz Gewicht: Approx.36kg
Sensor: Celtron laadcel Capaciteit: 2kg, 50 kg (push-pull-meter optioneel)
Markeren:

Electronic Hounsfield tensile test machine

,

Universal force pull testing machine

,

Tensile strength measurement machine

Electronic Hounsfield Use Universal Testing Machines Force Pull Testing Machine



Universal Test Machine.pdf

GENERL SPECIFICATIONS
Estimated Packaging Dimensions: (W*D*H) 910*820*2210mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Estimated Gross Weight: 420kg

STANDARD FEATURES

Item Description
Frame capacity 5000kg
Load cell brand

Germany brand load cell for high accuracy
5000kg (1000,2000kg are optional)

Load accuracy 0.5% F.S
Control system PC with windows 7 system
Motor Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Vertical test space 1100mm including fixture
Horizontal test space ≤400mm
Test speed 0.1~300mm/min (adjustable)
Software TM 2101
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features

E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat


APPLICATIONS
1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample
5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.


PACKAGING

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.


SERVICES
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.



FAQ

Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
