5082-HD Secure Seal Tester for Bottle and Can Sealing Tests

Name: 5082-HD Secure Seal Tester for Bottle and Can Sealing Tests
Brand: Guangdong Haida Equipment Co., Ltd.
SKU: 5082-HD
Price: 7,500.00 USD
Availability: InStock

Alle producten

Labotestmachines
(84)

Milieu testkamer
(133)

trektestmachine
(221)

Vibratieschaakers
(27)

Toestellen voor het testen van ontvlambaarheid
(54)

Temperatuur vochtigheid kamer
(42)

versnelde het verouderen kamer
(59)

ip testmateriaal
(39)

Corrosie testkamer
(41)

ISTA-Verpakking het Testen
(34)

Testinstrumenten voor papierverpakkingen
(111)

meubilair het testen materiaal
(116)

medische hulpmiddelen tester
(10)

textiel het testen materiaal
(42)

Mechanische testmachine
(6)

Optische Metende Machine
(17)

Testapparatuur voor batterijen
(45)

Testapparatuur voor rubber-plastiek
(56)

chemische analysemachine
(19)

Elektronische sigarettenproefmachine
(10)

Certificaat

CHINA Guangdong Haida Equipment Co., Ltd. certificaten

Klantenoverzichten

Ja vorige week ontvingen wij de machine. Deze Machine was aardig, en dankt naverkoopserives, was zeer professioneel.

—— Peter Maas

Namens het bedrijf om uw fabrieken en bedrijven te bezoeken, is het technische personeel zeer professioneel en geduldig, ik denk dat ik graag weer met u samenwerk.

—— Steve Hubbard

Ik ben online Chatten Nu

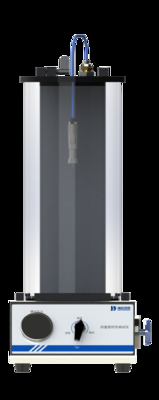

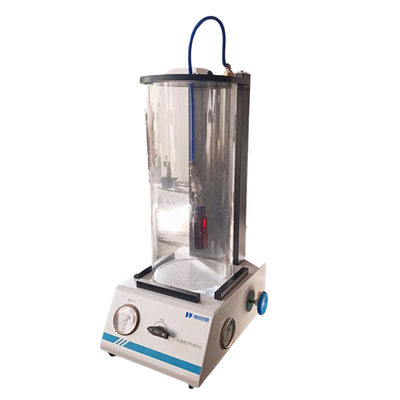

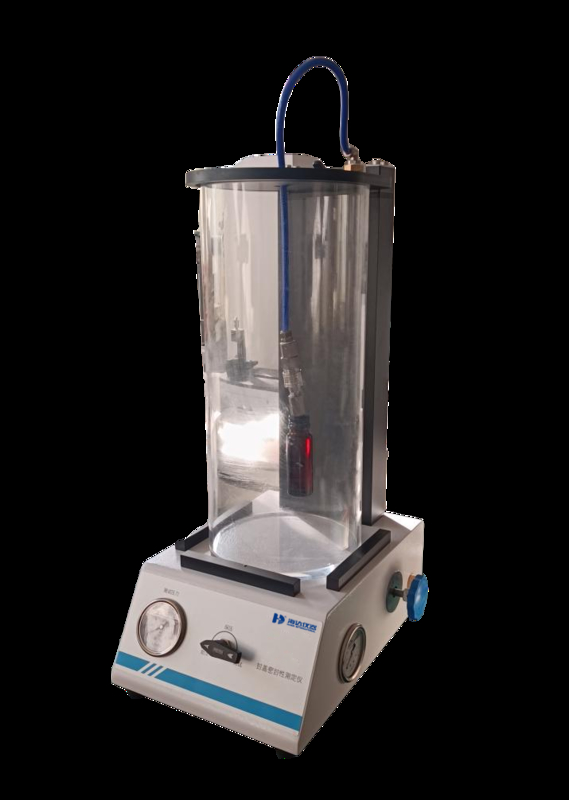

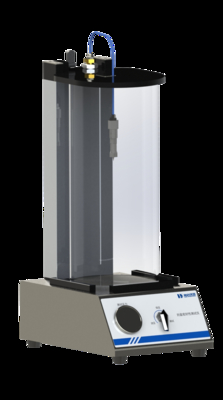

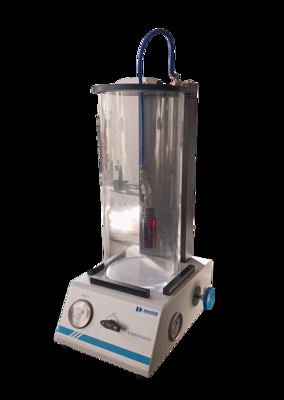

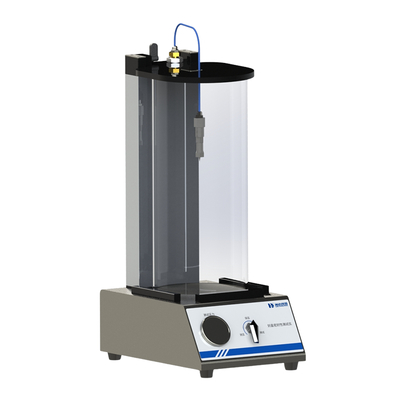

5082-HD Secure Seal Tester for Bottle and Can Sealing Tests

Grote Afbeelding : 5082-HD Secure Seal Tester for Bottle and Can Sealing Tests

Productdetails:

Plaats van herkomst:	China
Merknaam:	Haida
Certificering:	CE、ISO
Modelnummer:	5082-HD

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 set
Prijs:	Onderhandelbaar
Verpakking Details:	elke set beschermd met harsvezel en PP-folie, vervolgens in een sterke houten kist met bedieningshan
Levertijd:	20 dagen na bevestiging van bestelling
Betalingscondities:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen:	300 stuks per maand

Contact

5082-HD Secure Seal Tester for Bottle and Can Sealing Tests

beschrijving

Functie:	Compressieproef, papierbuiscompressievastheidstoets, barsttoets, trekproef, papiertestinstrument	naam:	papierbekerbuiscompressiesteuntester,papiertestinstrument papier GSM-test/barststerkte-tester,papier
Weergave:	LCD, Digitaal display	Units switch:	Kgf,N.( Optioneel),Lbf
Testende Snelheid:	10 ~ 200 mm/min	Afmeting:	360264400mm, 70 * 34 * 60 cm, 856580cm
Meetbereik:	250-5600 Kpa,10 ~ 1000mN	Weergavemodus:	LCD-scherm, digitale modus
Ontwerpcriteria:	ISO 2248, ASTM-D2210, TAPPI T403, GB/T4857-92, JIS Z0202-87
Markeren:	Bottle Secure Seal Tester , Secure Seal Tester With LCD Display , Bottle Can Secure Seal Tester

EQUIPMENT DETAILS OF 5082-HD SECURE SEAL TESTER

Product Specifications

Attribute	Value
Function	compression test, Paper Tube Compressive Strength Test, Burst tester, tensile test, Paper Testing Instrument
Name	paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/ bursting strength tester, paper testing instrument
Display	LCD, Digital display
Units switch	Kgf, N. (Optional), Lbf
Testing speed	10 ~ 200 mm/min
Dimension	360264400mm, 70 34 60 cm, 856580cm
Measuring range	250-5600 Kpa, 10 ~ 1000mN
Display mode	LCD display, digital mode
Design criteria	ISO 2248, ASTM-D2210, TAPPI T403, GB/T4857-92, JIS Z0202-87

Product Description

The 5082-HD Secure Seal Tester is designed for comprehensive testing of bottle and can sealing integrity to prevent air leakage and ensure packaging quality control. Suitable for PET bottles, glass bottles, cans, and crown caps.

Standard Specifications

Pressurization: Compressed air or carbon dioxide is used for inflation and pressurization

Positive pressure measurement: Avoids the deficiency of negative pressure measurement that the pressure is less than 1 bar

Test pressure range: 0-16bar (1.6Mpa)

Material: Made of oxidized aluminum, stainless steel and plastic materials, strong and durable

Pressure control: Equipped with pressure reducing valve for easy maximum test pressure setting

Flow control: Precise adjustable pressure increase speed (5-60 seconds to reach 1Mpa)

Safety features: Pressure reducing valve, safety valve, barrel cover safety latch, pressure-opening valve, exhaust holes

Pressure gauge division: 0.05Mpa

Pressure gauge display range: 0-1.6Mpa

Maximum sample size: 330 * 150mm (height* diameter)

Dimensions: 320 * 380 * 720 mm

Net weight: 15 kg
