EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)
EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

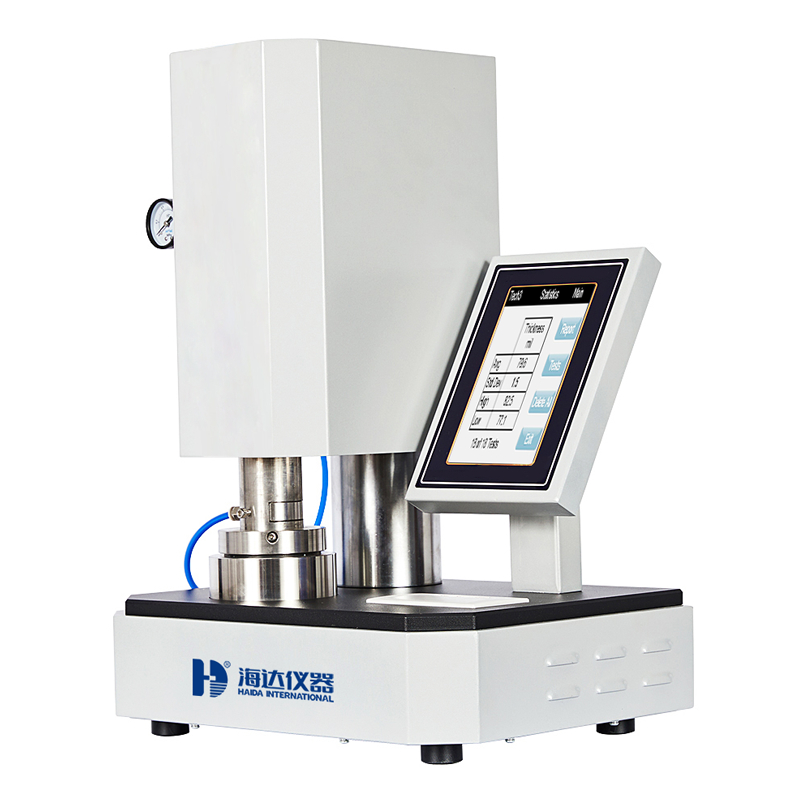

Grote Afbeelding :  EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

Productdetails:
Plaats van herkomst: CHINA
Merknaam: Haida
Certificering: CE,,ISO
Modelnummer: 5095-HD
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: Onderhandelbaar
Verpakking Details: Elke set beschermd met harsvezels en PP -film en vervolgens in een sterke houten behuizing geplaatst
Levertijd: 20 dagen na bestelling bevestigd
Betalingscondities: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Levering vermogen: 300 sets per maand

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

beschrijving
Effectieve grootte van de werkplek: 280*170*120 mm Temperatuurnauwkeurigheid: ± 0,2 °C
Slingerhoek: 150° Capaciteit: Een tot één.5,2-2,5/3-3,5 T/H
Toevoegingskracht: 0 tot 50 kg Timingswijze: Counter-up, counter-down
Ontwerpstandaarden: HS 80 ± 5 Testsnelheid: 5 ~ 60 cycli/minuten
effecthoek: 90 graden Lengte van de slinger: 200 mm
Gegevens die worden weggegooid: CPU Schilfoorhoek: 90 °
Hoofd scherp meten: 35 °, 30 ° Ovengrootte: Φ45 mm*350 mm

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 0

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 1



DESCRIPTION

Thickness tester is used for thickness determination of film.

DESIGN STANDATD

GB/T 6672,ISO 4593

PRODUCT FEATURES

1. One-click test, easy to operate.

2. Cotex-M4 processor, improve the response speed of the instrument, accurate and fast calculation.

3. Automatic measurement, statistics, print test results, and has a data saving function

TECHNICAL PARAMETERS

Item

Description

Display

7-inch touch screen display

Measure range

(0~2)mm

Resolution

0.0001mm

Indication error

±1um

Repeatability

±1um

Measuring parallelism

0.002mm

Contact area

50 mm2

Contact pressure

film (17.5 ± 1) kPa

Probe descent rate

0.5~10mm/s(adjustable)

Data storage

50 times test data

Result Output

USB flash drive data export

Print

Thermal printer

l Communication interface

USB, WIFI(2.4G)

Dimension

365x255x440 mm(L*W*H)

Net weight

27Kg




Haida International Equipment Co,Ltd

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 2 EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 3 EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 4
WHY CHOOSE US?
  • Design & Production : Solution Consultation for each order
  • Recommend the most cost -performance machine
  • Research & Develop the suitable one for Special- designed Model.
  • Shipping & Delivery: One-Stop Service
  • Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
  • 1 year warranty with lifetime technology support
  • After-Sale Service
  • React within 2 Hours
  • Video inspection & on-site service combined
FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
