Somerville Sieve Content Analyzer HD-P001 for Pulp Testing

Somerville Sieve Content Analyzer HD-P001 for Pulp Testing
Somerville Sieve Content Analyzer HD-P001 for Pulp Testing Somerville Sieve Content Analyzer HD-P001 for Pulp Testing

Grote Afbeelding :  Somerville Sieve Content Analyzer HD-P001 for Pulp Testing

Productdetails:
Place of Origin: China
Merknaam: Haida
Certificering: CE、ISO
Model Number: HD-P001
Betalen & Verzenden Algemene voorwaarden:
Minimum Order Quantity: 1 set
Prijs: Onderhandelbaar
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 300 Sets per Month
Contact

Somerville Sieve Content Analyzer HD-P001 for Pulp Testing

beschrijving
Function: compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument Name: paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument
Display: LCD,Digital display Feature: easy to operate
Operation Method: Automatic Product Type: Testing Instruments
Protection Device: Induction type protection device Control: PLC control
Sensing Method: Pressure Transmitter Stop: Stop test
Force Resolution: 1/500000 of the maximum test force fs Sample Size: 100(L)×63(W)mm
Dropping Height: 300mm-1500mm Vibration Mode: reciprocating
Test Cycles Setting: 4 digits pre-set counter
Markeren:

Pulp Testing Sieve Content Analyzer

,

HD-P001 Sieve Content Analyzer

,

Somerville Sieve Content Analyzer

HD-P001 Sommerville Sieve Content Analyzer
Product Specifications
Attribute Value
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Name Paper cup tube compressive strength tester, Paper testing instrument paper GSM tester/bursting strength tester
Display LCD, Digital display
Feature Easy to operate
Operation Method Automatic
Product Type Testing Instruments
Protection Device Induction type protection device
Control PLC control
Sensing Method Pressure Transmitter
Stop Stop test
Force Resolution 1/500000 of the maximum test force FS
Sample Size 100(L)×63(W)mm
Dropping Height 300mm-1500mm
Vibration Mode Reciprocating
Test Cycles Setting 4 digits pre-set counter
Product Description

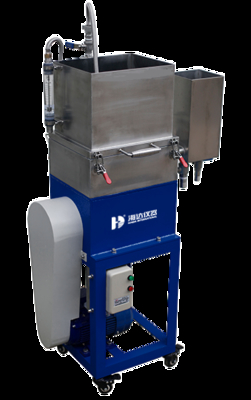

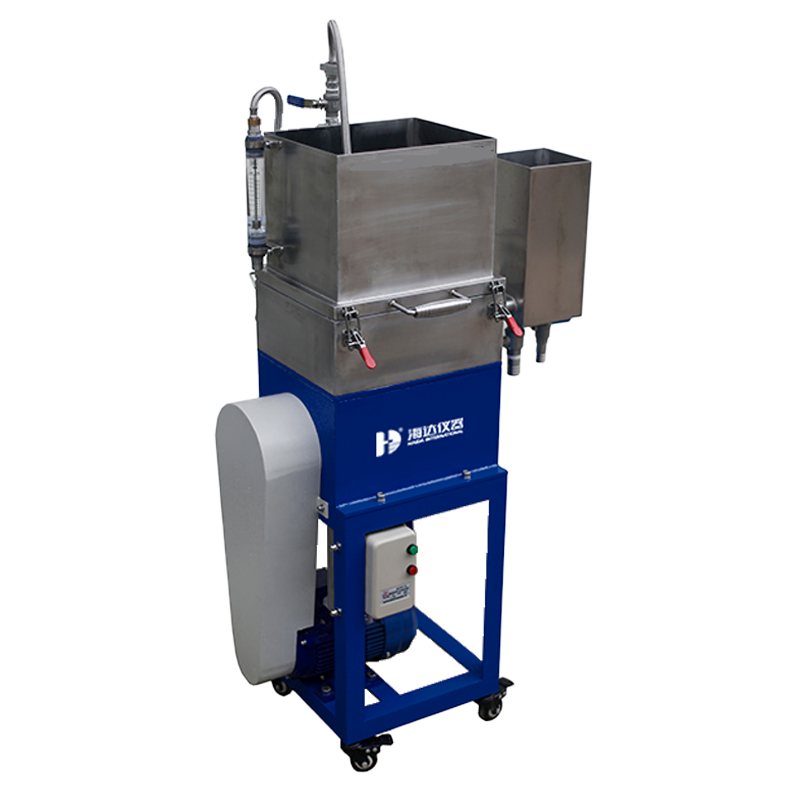

The HD-P001 Sommerville Sieve Content Analyzer is a laboratory-specific pulp screening equipment that separates large sticky matter, plastic, sediment, iron filings, and other impurities in the pulp through the up and down vibration of the screen plate.
Somerville Sieve Content Analyzer HD-P001 for Pulp Testing 0
Application
This machine checks and quantifies impurities in pulp samples through vibration screening, conforming to TAPPI 275 standards.
Standard Features
Sieve plate size 307mm×268mm
Screen slit Length 45 mm, width 0.15 mm
Specification of sieve plate sieve slit 0.15mm
Rubber membrane and actuation: Amplitude 3.2 ± 0.1mm eccentric actuation at 690-700 rpm
Water flow rate control 8.6 L/min. Water pressure: 1.23 Kg/cm²
Dimensions 720*410*1150mm
Other optional sieve plate sieve slot specifications 0.15mm, 0.2mm, 0.3mm, 0.35mm, 0.4mm
Somerville Sieve Content Analyzer HD-P001 for Pulp Testing 1 Somerville Sieve Content Analyzer HD-P001 for Pulp Testing 2 Somerville Sieve Content Analyzer HD-P001 for Pulp Testing 3
