5099-HD Oxygen Transmission Rate Tester
Product Overview
This advanced oxygen transmission rate tester utilizes coulometric oxygen analysis sensors and isobaric test principles to provide high-efficiency oxygen permeability testing for materials with varying gas barrier properties. The system offers precise temperature, humidity, and flow rate control with exceptional test sensitivity and repeatability.
Key Attributes
| Function |
Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument |
| Display |
LCD, Digital display with unit switching (Kgf, N, Lbf) |
| Control System |
PLC (Programmable Logic Controller) |
| Movement Drive |
Ball screw and servo motor |
| Vibration Mode |
Reciprocating |
| Design Standards |
EN71, ANSI, UL, ASTM, ISTA |
| Test Methods |
Electronic, mechanical, manual |
| Transmission Mode |
Pneumatic device + reducer + release |
Technical Features
- Three independent test chambers for simultaneous testing of different samples
- Imported high-precision sensors ensure exceptional test accuracy
- Advanced water bath temperature control system with wide temperature range
- Independent control of upper/lower chambers and sensors for result accuracy
- Sealed pipeline system reduces system errors for more precise results
- Anti-leakage sample structure design for stable sealing
- Multiple test modes (manual, proportional, cyclic) for various scenarios
- Expandable USB interfaces and network ports for data access
- Self-detection capabilities ensure continuous operational status
- Power-off automatic save function prevents data loss
Technical Specifications
| Measuring Range |
Film: 0.01-200cm³/m²*24h (conventional)
Container: 0.00025-1 cm³/pkg*24h (optional) |
| Resolution |
0.001 cm³/m²•24h |
| Temperature Control |
5°C to 85°C (±0.1°C accuracy) |
| Humidity Control |
0% RH, 5%-90%RH, 100%RH (±1%RH accuracy) |
| Sample Capacity |
1-3 pieces (independent data) |
| Transmission Area |
50 cm² |
| Max Sample Thickness |
≤3mm |
| Carrier Gas |
99.999% high purity nitrogen (user-provided) |
| Dimensions |
740mm (L) × 415mm (W) × 430mm (H) |
| Weight |
50Kg |
| Power Supply |
AC 220V 50Hz |
Compliance Standards
GB/T 19789, ISO 15105-2, ASTM D3985, ASTM F2622, ASTM F1927, JIS K7126-2, YBB 00082003
Applications
Ideal for oxygen permeability testing of films, sheets, paper, and packaging materials in food, pharmaceuticals, medical devices, cosmetics, photovoltaic electronics, and related industries.

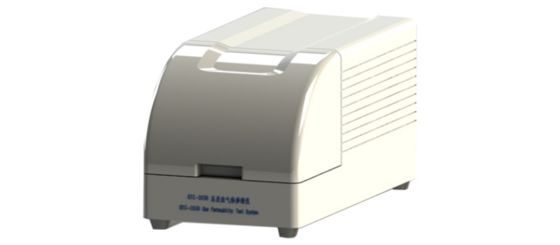

Product Images
