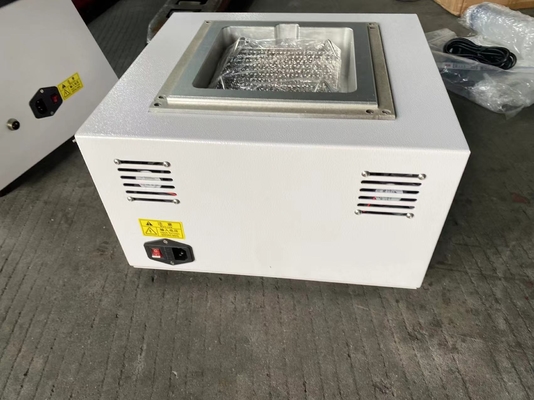

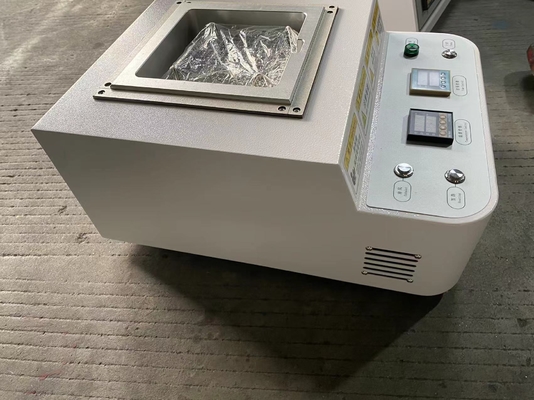

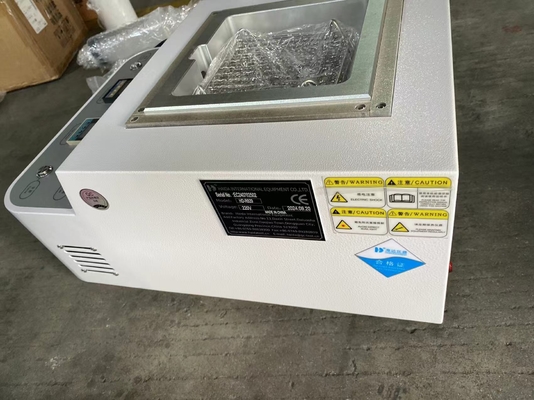

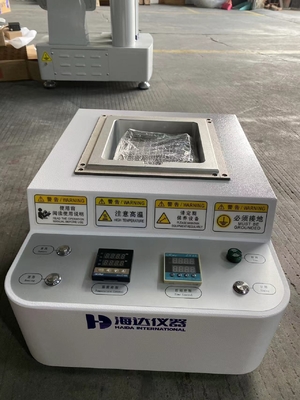

5087-HD Film Shrinkage Tester
Product Overview
The 5087-HD Film Shrinkage Tester is designed for precise measurement of thermal shrinkage performance in various packaging films and materials. This advanced testing instrument offers both automatic and manual testing options with high accuracy temperature control.
Key Features
- Comprehensive testing capabilities including compression, tensile, and bursting strength tests
- Digital LCD display with multiple unit options (Kgf, N, Lbf)
- Adjustable travel speed from 20-80 mm per second
- Microcomputer control with PLC programmed operation
- Complies with ISO, ASTM, TAPPI and other international standards
- Oil bath heating system with precise temperature control (±0.3℃)
Technical Specifications
| Attribute |
Value |
| Model |
PTI-01 |
| Display |
LCD Digital Display |
| Dimensions |
450×300×580mm |
| Measuring Thickness |
≤1mm |
| Steel Ball |
16mm * 20 |
| Travel Speed |
20-80 mm/sec (adjustable) |
| Pressure |
4 to 8 Mpa |
| Temperature Range |
Up to 200℃ (internal) |
| Power |
220V, 50HZ |
| Weight |
18kg |
Applications
This tester is suitable for evaluating thermal shrinkage performance of various packaging films including PE, PVC, POF, OPS, PET, as well as flexible packaging composite films, PVC polyvinyl chloride hard sheets, and solar cell back plates. Ideal for testing materials used in beverage, food, and pharmaceutical packaging applications.
Testing Standards
Complies with GB/T 13519, ASTM D2732, YBB00292004-2015, YBB00212005-2015, YBB00232005-2015, YBB00222005-2015, and YBB00202005-2015 standards.
Testing Principle

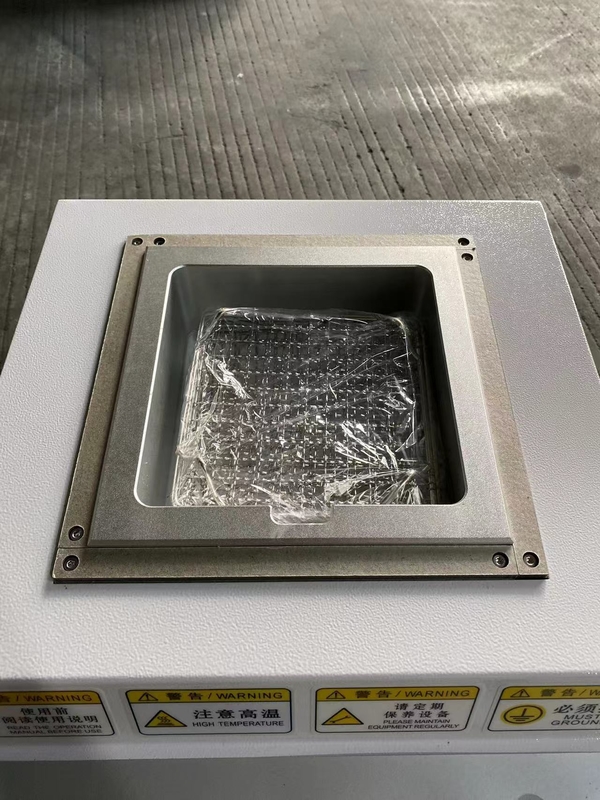

The instrument precisely controls the temperature of heat-carrying oil in the heating tank. Samples are cut to specific dimensions, placed in the heating tank for a set duration, then measured after cooling to calculate the thermal shrinkage rate.
Standard Configuration
- Main unit
- Sample tray
- Sample clip
- Heat conduction oil
- Sampling knife
- Sampling standard ruler
Manufacturer Information
Haida products are widely used across paper goods, packaging, printing, adhesive tapes, footwear, electronics, plastics, and rubber industries. Our testing equipment meets UL, ASTM, JIS, GB, and ISO standards for quality assurance.
