GB 8410-2006 Compliant Automotive Interior Materials Flammability Testing Equipment

GB 8410-2006 Compliant Automotive Interior Materials Flammability Testing Equipment
GB 8410-2006 Compliant Automotive Interior Materials Flammability Testing Equipment

Grote Afbeelding :  GB 8410-2006 Compliant Automotive Interior Materials Flammability Testing Equipment

Productdetails:
Plaats van herkomst: China
Merknaam: Haida
Certificering: CE,,ISO
Modelnummer: 6022-HD
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: Onderhandelbaar
Verpakking Details: Elke set beschermd met harsvezel en PP-film, dan in een sterke houten behuizing met operatie man
Levertijd: 20 dagen na bevestiging van bestelling
Betalingscondities: Betalingsvoorwaarden
Levering vermogen: 300 stuks per maand

GB 8410-2006 Compliant Automotive Interior Materials Flammability Testing Equipment

beschrijving
De tijd van de vlamtoepassing: Verstelbaar: 0-3200,0 seconden Brandtijd: Verstelbaar: 0-3200,0 seconden
Brander hoek: Vastgesteld op 90° (verticaal) Vlamhoogte: Verstelbaar: 20-100 mm (standaardconform)
Temperatuurvertoning: Digitale aflezing; resolutie: 0,1°C staalheerser: Lange: 500 mm; nauwkeurigheid: 1 mm
Brandstofgas: Liquefied gas van hoge zuiverheid Stroomvoorziening: AC 220V, 50Hz
Verbrandingskamer afmetingen (L × W × H): 385 × 204 × 360 mm
Markeren:

Automotive Interior Materials Flammability test equipment

,

Flammability Testing Machine

,

Automotive Interior Materials Flammability Testing Equipment

Automotive Interior Materials Flammability Tester GB 8410-2006

Product Description

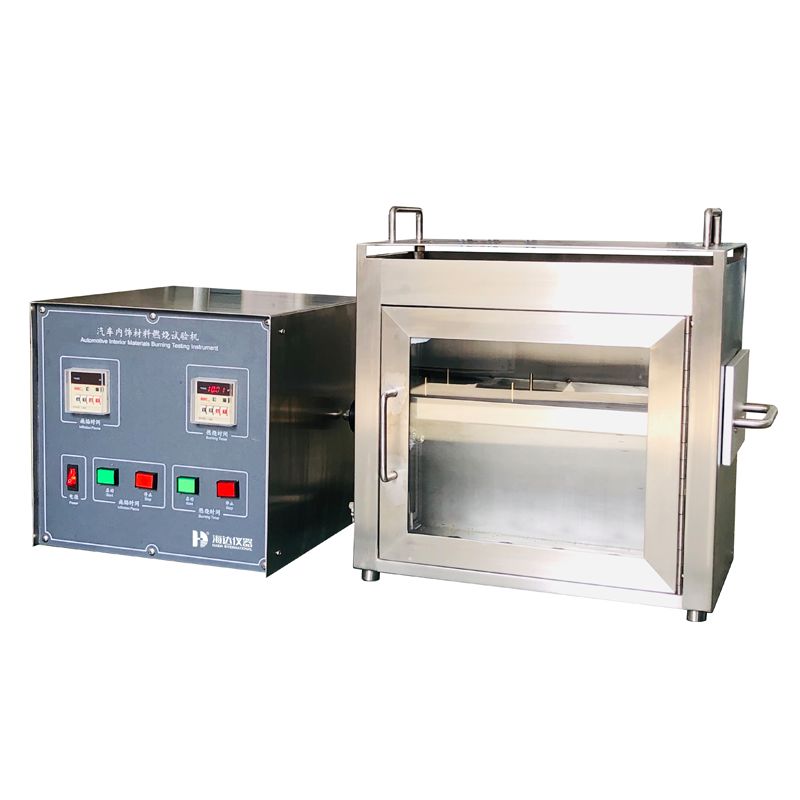

Automotive Interior Materials Flammability Tester is designed and manufactured in accordance with GB 8410-2006 to evaluate the horizontal burning characteristics of automotive interior materials.



Test Standard


GB 8410-2006, ASTM D5132, FMVSS 571.302, ISO 3795



Product Specifications
Model 6022-HD
Combustion Chamber Dimensions (L×W×H) 385×204×360mm
Flame Application Time Adjustable: 0-99 minutes 99 seconds
Burning Time Adjustable: 0-99 minutes 99 seconds
Burner Angle Fixed at 90° (vertical)
Burner Specifications Nozzle inner diameter: Ø9.5mm; Effective length: 100mm; Equipped with air adjustment holes.
Flame Height Adjustable: 20-100mm (standard-compliant).
Thermometer Range: 150°C; Resolution: 1°C.
Steel Ruler Length: 500mm; Accuracy: 1mm
Fuel Gas High-purity liquefied gas
Configuration Includes:
• Control box
• Combustion chamber
• Burner lamp
• Solenoid valve
• High-voltage igniter
• Thermometer
• Signal control cables
• Upper/lower sample holders
• 500mm/1mm steel ruler.
Power Supply AC 220V, 50Hz
