Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

Certificaat
CHINA Hai Da Labtester certificaten
CHINA Hai Da Labtester certificaten
Klantenoverzichten
Ja vorige week ontvingen wij de machine. Deze Machine was aardig, en dankt naverkoopserives, was zeer professioneel.

—— Peter Maas

Namens het bedrijf om uw fabrieken en bedrijven te bezoeken, is het technische personeel zeer professioneel en geduldig, ik denk dat ik graag weer met u samenwerk.

—— Steve Hubbard

Ik ben online Chatten Nu

Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards
Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

Grote Afbeelding :  Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

Productdetails:
Plaats van herkomst: China
Merknaam: Haida
Certificering: CE,,ISO
Modelnummer: 6015-HD
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: Onderhandelbaar
Verpakking Details: Elke set beschermd met harsvezel en PP-film, dan in een sterke houten behuizing met operatie man
Levertijd: 20 dagen na bevestiging van bestelling
Betalingscondities: Betalingsvoorwaarden
Levering vermogen: 300 stuks per maand

Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

beschrijving
Thermocouple: gewapende K-type (NiCr/NiAl) fijndraadthermocouple met een schede met een diameter van 0,5 mm Timer: Aanpasbaar bereik: 0,01-99,99 seconden
Diameter: Ø9.00±0.01 mm lengte: 19.14±0,02 mm
Schuine randhoek: 45 ± 0,5° Massa (voor het boren): 100,00 g±0,05 g
materiaal: met een breedte van niet meer dan 50 mm Oppervlakte afwerking: volledig gepolijst
Markeren:

GB/T 5169.15 Flammability Testing Equipment

,

ASTM D5207-03 Flammability Testing Equipment

,

IEC 60695-11-3 Flammability Testing Equipment

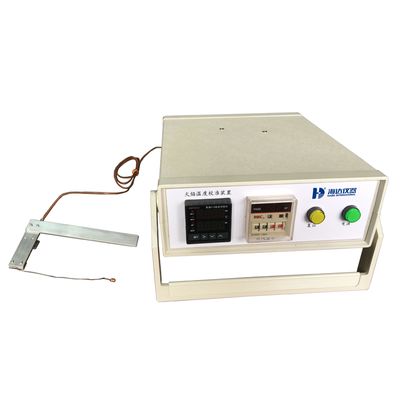

Flame Temperature Calibration Device 500W

Product Description


This calibration device is designed in accordance with ASTM D5207-03 and related IEC, UL, GB standards for measuring flame temperatures in combustion test equipment.

Calibration Procedure

Position the copper block 55±1mm above the needle flame burner. Ignite the flame; the time for the copper block temperature to rise from 100°C±2°C to 700°C±3°C must be 54±2 seconds to validate the flame for testing.
Perform three measurements, allowing the copper block to cool naturally to <50°C between tests.

Test standard

ASTM D5207-03: Standard Practice for Confirmation of 20-mm (50-W) and 125-mm (500-W) Test Flames for Small-Scale Burning Tests on Plastic Materials. GB/T 5169.15: Fire Hazard Testing for Electric and Electronic Products - Part 15: Test Flames - 500W Flame Apparatus and Confirmational Test Methods.
IEC 60695-11-3: Fire hazard testing for electric and electronic products - Part 11-3: Test flames - 500W flames - Apparatus and confirmational test methods.

Product Specifications
Model 6015-HD
Thermocouple Armored K-type (NiCr/NiAl) fine-wire thermocouple with a 0.5mm diameter sheath.
Timer Adjustable range: 0.01-99.99 seconds
Copper Block Specifications
Diameter Ø9.00±0.01mm
Length 19.14±0.02mm
Bevel Angle 45±0.5°
Mass (Pre-drilling) 10.00g±0.05g
Material High-conductivity electrolytic copper
Surface Finish Fully polished
Moel6001-
Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards 0






About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards 1Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards 2Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards 3Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards 4Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards 5Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards 6




Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined



FAQ:

Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
