5V 3A Battery Formation& Grading Machine For Lithium ion Battery

Name: 5V 3A Battery Formation& Grading Machine For Lithium ion Battery
Brand: Hai Da Labtester
SKU: 8008-HD
Price: 7,500.00 USD
Availability: InStock

Alle producten

Labotestmachines
(68)

Milieu testkamer
(114)

trektestmachine
(224)

Toestellen voor het testen van ontvlambaarheid
(45)

Temperatuur vochtigheid kamer
(42)

versnelde het verouderen kamer
(59)

ip testmateriaal
(39)

Corrosie testkamer
(41)

ISTA-Verpakking het Testen
(34)

Testinstrumenten voor papierverpakkingen
(96)

meubilair het testen materiaal
(115)

medische hulpmiddelen tester
(10)

textiel het testen materiaal
(40)

Vibratieschaakers
(23)

Mechanische testmachine
(6)

Optische Metende Machine
(23)

Testapparatuur voor batterijen
(43)

Testapparatuur voor rubber-plastiek
(54)

chemische analysemachine
(19)

Elektronische sigarettenproefmachine
(10)

Certificaat

Klantenoverzichten

Ja vorige week ontvingen wij de machine. Deze Machine was aardig, en dankt naverkoopserives, was zeer professioneel.

—— Peter Maas

Namens het bedrijf om uw fabrieken en bedrijven te bezoeken, is het technische personeel zeer professioneel en geduldig, ik denk dat ik graag weer met u samenwerk.

—— Steve Hubbard

Ik ben online Chatten Nu

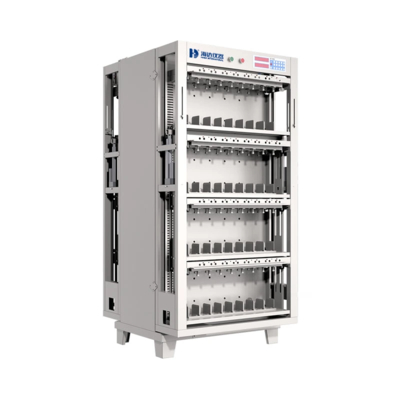

5V 3A Battery Formation& Grading Machine For Lithium ion Battery

Grote Afbeelding : 5V 3A Battery Formation& Grading Machine For Lithium ion Battery

Productdetails:

Plaats van herkomst:	China
Merknaam:	Haida
Certificering:	CE,,ISO
Modelnummer:	8008-HD

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1
Prijs:	Onderhandelbaar
Verpakking Details:	Elke set beschermd met harsvezels en PP -film en vervolgens in een sterke houten behuizing geplaatst
Levertijd:	20 dagen na bestelling bevestigd
Betalingscondities:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Levering vermogen:	300 sets per maand

Contact

5V 3A Battery Formation& Grading Machine For Lithium ion Battery

beschrijving

Applicatie:	batterij het testen	Bedradingsmethode:	AC-driefasige vierdraad
Weergave:	LCD	Oplossing:	0.001V/0.001A
Bedradingsmethode:	AC 220V	Huidige Resolutie:	1mA
Communicatie -interface:	RS232/RS485/USB/Ethernet	Stroombereik:	0-50A
Spanning:	380V	Frequentie van de stroomtoevoer:	50 ± 5% Hz
Software:	Opgenomen	Type:	Testend Systeem
Thd:	<5%	Huidige schakeltijd:	20 ms ((-90%~90% F.S.)
Temperatuurmeting nauwkeurigheid:	± 1 ℃	Uitgangsstroom:	300A/400A/600A/1000A/2000A/4000A
voltagenauwkeurigheid:	± 0,02% F.S.	Voedingsspanning:	380 ± 10% VAC
Stroomvoorziening:	AC 220V/50Hz	Capaciteit:	60V tot 200V, 100V tot 1500V
Totaal uitgangsvermogen:	10 kW-120 kW	kabinetsgrootte:	6008501980 (WDH mm)

5V 200A Battery Formation& Grading Machine

Power battery modules/packs (such as square aluminum shell LFP/NMC batteries): The capacity division current can reach 100A-500A, testing high voltage and high current performance for electric vehicles and power tools.

Model:

8008-HD

Inquiry

Product Description

Battery Formation& Grading Machine 5V 200A For Lithium ion Battery 5V 3A It can used for cylindrical batteries(18650,21700) which widely applied in Consumer electronics,covering Cell phones, laptops, drones battery capacity and more.

Prismatic Cell Grading Machine with energy feedback function is the latest generation of energy-saving battery testing equipment based on PWM high-frequency power feedback technology . after years of research and development. It is widely used in lithium-ion batteries and nickel-metal hydride batteries formation and capacity testing of nickel-cadmium batteries.

Product Specifications

Model	8008-HD
Channels	32 Channels
Voltage Range	DC0~5V
Voltage Accuracy	0.1mV
Output Current Range	200mA ~200A
Current Accuracy	0.1mA
Jig Form	Push Down Four Wire Method Fixture
Fixture Spacing	162mm
Battery Type	Prismatic Cell
Working Power Supply	Three-Phase Five-Wire Ac380V±10%, 50Hz
Ac Current Distortion Rate	≤5%
Power Consumption	≤13Kw
Power Factor	≥0.99
Charging Efficiency Of Whole Machine	≥75%
Feeder Net Conversion Efficiency	≥70%
Equipment Failure Rate	<1%
Work Environment	Temperature -10 ~ 40℃, Relative Humidity ≤80%
Heat-Dissipating Method	Natural Air Intake And Upward Exhaust
Control mode	Computer control equipment operation, whole cabinet control/single board start/single point start, with scanning system
Communication mode	485 serial port communication (baud rate 57600)/TCP communication
Process setting	Up to 32 steps and 256 cycles can be set
Charge voltage	time Constant current, constant voltage, constant current constant voltage
Charge end conditions	Voltage, current, time, capacity, -△V
Discharge mode	Constant current, constant power, constant resistance
Discharge end conditions	Voltage, time, capacity
Time range	0~3000 minutes/step, time unit is min
Time accuracy	<+1%60

Product Characteristics

Accurate sorting to ensure battery consistency Capacity sorting

1. High-precision measurement: ±0.5‰ current/voltage accuracy

2. Intelligent grading: According to parameters such as capacity, internal resistance, and voltage, the battery is automatically graded

3. Performance verification

-Cycle life test: Supports cyclic charging and discharging

-Temperature simulation: Optional temperature control module (-40°C to +85°C) to test battery performance in extreme environments.

4. Data management

Report generation: One-click export of PDF/Excel reports to meet quality certification requirements (such as IEC 62133, UL standards).
