Paper Core Radial Crush Test Machine for Compression Strength

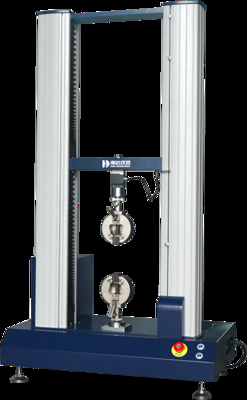

Grote Afbeelding : Paper Core Radial Crush Test Machine for Compression Strength

Productdetails:

Place of Origin:	China
Merknaam:	Haida
Certificering:	CE、ISO
Model Number:	HD-B604-S

Betalen & Verzenden Algemene voorwaarden:

Minimum Order Quantity:	1 set
Prijs:	Onderhandelbaar
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact

Paper Core Radial Crush Test Machine for Compression Strength

beschrijving

Functie:	Compressietest, Papierbuiscompressieve sterkte -test, burst -tester, trekstest, papieren testinstrum	Naam:	Papierbekerbuis Compressiefsterkte Tester, papieren testinstrument papier GSM -tester/ barstende ste
Weergave:	LCD, digitaal display	Functie:	Makkelijk te bedienen
Bedieningsmethode:	Automatisch	Producttype:	Testinstrumenten
Beschermingsapparaat:	Beschermingsapparaat voor inductietype	Controle:	PLC -besturing
Detectiemethode:	Drukzender	Stop:	Stop test
Dwangresolutie:	1/500000 van de maximale testkracht FS	Trillingsmodus:	wederzijds
Markeren:	Compression Strength Test Machine , Paper Core Radial Crush Test Machine

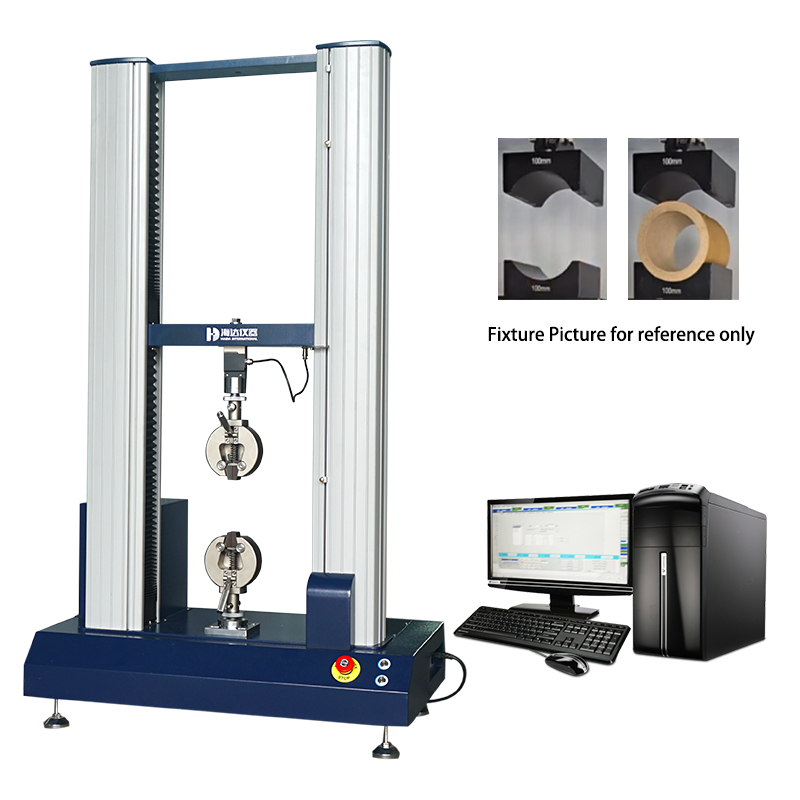

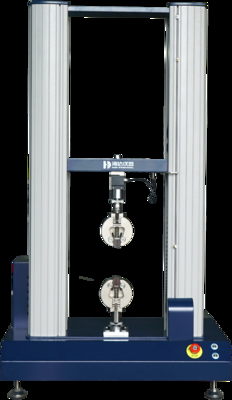

HD-B604-S Paper Core Radial Crush Test Machine

Product Overview

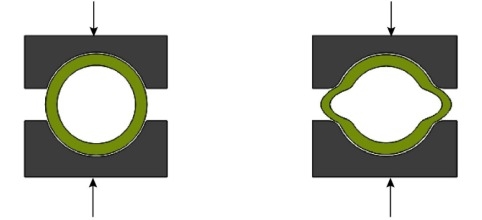

The HD-B604-S measures a paper core's resistance to inward crushing forces, evaluating its ability to maintain structural integrity under stress. This advanced testing instrument combines precision engineering with user-friendly operation for reliable results.

Key Attributes

Function	Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display	LCD, Digital display
Operation Method	Automatic
Control	PLC control
Sensing Method	Pressure Transmitter
Force Resolution	1/500000 of the maximum test force fs

General Specifications

Packaging Dimensions (WDH)	69010801790mm
Power Supply	Single-phase, 220V±10%, 50/60Hz (configurable)
Gross Weight	270kg
HS Code	9024800000

Technical Parameters

Load Capacity	5-2000kg (Optional)
Motor	400W servo motor
Driver	400W servo driver
Screw	High precision imported ball screw
Control Mode	Computerized, Windows mode operation
Test Speed	0.1-500mm/min (Adjustable)
Load Resolution	1/250,000
Load Accuracy	≤0.5%
Unit Switching	gf/kgf/N/kN/LBf/T
Dimensions (LWH)	8805051470mm
Weight	150KG (Approx)
Power	1∮ AC 220V

Advanced Features

Integrated testing platform for tensile, deformation, peeling, tearing, and compression tests
Comprehensive data analysis including constant tensile stress, elastic modulus, stress and strain
Double-pillar ball nut and screw drive for high precision and smooth operation
Compact, integrated design suitable for various testing environments
Stepless speed adjustment from 1-500mm/min for versatile testing conditions
Intelligent safety features including multi-level limit protection, overload protection, and automatic high-speed return
Embedded control system with membrane key switch for efficient operation
Enhanced data security and reliability with embedded control system
Multiple connectivity options with 4 USB ports and 2 network ports
