5108-HD Condom Electrical Leak Tester for RoHS Compliance Testing

5108-HD Condom Electrical Leak Tester for RoHS Compliance Testing
5108-HD Condom Electrical Leak Tester for RoHS Compliance Testing 5108-HD Condom Electrical Leak Tester for RoHS Compliance Testing

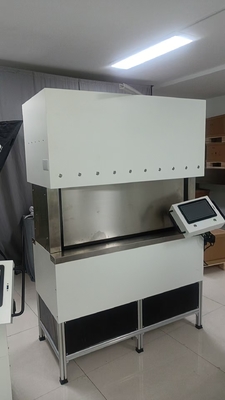

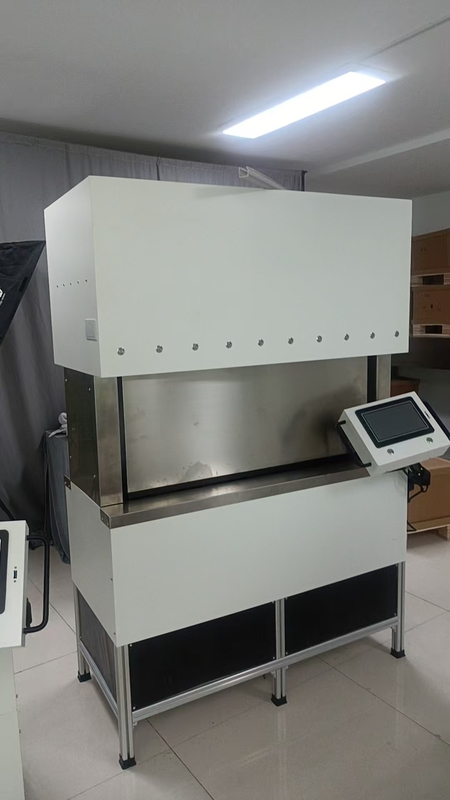

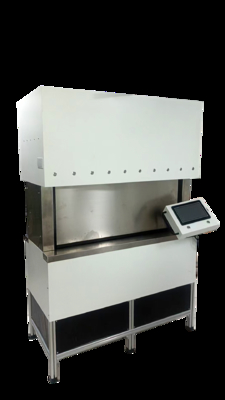

Grote Afbeelding :  5108-HD Condom Electrical Leak Tester for RoHS Compliance Testing

Productdetails:
Place of Origin: china
Merknaam: HAIDA
Certificering: CE
Model Number: 5108-HD
Betalen & Verzenden Algemene voorwaarden:
Minimum Order Quantity: 1set
Prijs: Onderhandelbaar
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,T/T,D/P,Western Union,MoneyGram
Supply Ability: 30 Sets per Month
Contact

5108-HD Condom Electrical Leak Tester for RoHS Compliance Testing

beschrijving
Minimum Detection Limit: Pb≤5ppm, Cd/Cr/Hg/Br≤2ppm, Cl≤50ppm Peak Area Reproducibility: < 0.5% RSD
Rsd: ≤1.5% Grating Lines: 1800
Detector: Photomultiplier Tube Detection Object: Solid
Content Analysis Range: 1ppm~99.99% Test Object: Powder, Solid, Liquid
Resolution: 0.1nm Test Time: 100-300 seconds (adjustable)
Sensitivity: 0.001 Abs Cooling Rate: < 3.5min (450˚C to 50˚C)
Analysis: 4 phthalates in RoHS2.0 directive Model: 1234
Spectral Bandwidth: 0.1nm, 0.2nm, 0.4nm, 0.7nm, 1.0nm, 2.0nm
Markeren:

RoHS Compliance Tester

,

Solid Object Analysis Condom Leak Tester

,

5108-HD Leak Tester

5108-HD Condom Electrical Leak Tester
Product Attributes
Attribute Value
Minimum Detection Limit Pb≤5ppm, Cd/Cr/Hg/Br≤2ppm, Cl≤50ppm
Peak Area Reproducibility < 0.5% RSD
Rsd ≤1.5%
Grating Lines 1800
Detector Photomultiplier Tube
Detection Object Solid
Content Analysis Range 1ppm~99.99%
Test Object Powder, Solid, Liquid
Resolution 0.1nm
Test Time 100-300 seconds (adjustable)
Sensitivity 0.001 Abs
Cooling Rate < 3.5min (450˚C to 50˚C)
Analysis 4 phthalates in RoHS2.0 directive
Model 1234
Spectral Bandwidth 0.1nm, 0.2nm, 0.4nm, 0.7nm, 1.0nm, 2.0nm
Product Description

The condom electrical leak detector is designed for rubber sleeves and condom pinhole leakage testing, compliant with GB7544, ISO 4074, and ISO 25841 standards.

Key Features
  • Comfortable and safe operation with compact structure for easy maintenance
  • Dual testing modes: water leakage test (visual observation) and electrical inspection
  • Interchangeable measuring heads for male and female condoms
  • 10 independent automatic lifting test heads with automatic data transmission
  • Data acquisition port for printing and saving results
  • Wide test range accommodates various sample sizes
Testing Principles

Electrical Inspection Method: Detects pinholes using electronic shielding. Intact condoms act as insulators, while those with pinholes complete the current circuit.

Visual Inspection Method: Involves filling condoms with water and manually observing for leaks.

Technical Parameters
Item Parameter
Test position 10
Water temperature (10℃～40℃), time (10±2)s
Injection volume (50mL～1000mL) ±10mL (automatic water injection, adjustable)
DC voltage (10±0.1)V
Voltmeter accuracy ±0.3mV
Precision resistance (10±0.5)kΩ
Dimensions 1000 mm (L) × 450 mm (W) × 1600 mm (H)
Weight Approx. 180kg
Configuration Main unit workstation, measuring electrode rod, male condom test heads, female condom leak test stand
5108-HD Condom Electrical Leak Tester for RoHS Compliance Testing 0
5108-HD Condom Electrical Leak Tester for RoHS Compliance Testing 1
View product video demonstration

About Haida: Founded in 2004, Haida® is a market leader in testing equipment based in Dongguan, China. The company specializes in four main manufacturing series: Accelerated Environmental Series (AES), Universal Tensile Machine (UTM), Paper & Packaging (P&P), and Foam, Furniture & Optical (FFO), with additional expertise in textile, footwear, leather, luggage, baby carriage, toys, and optical testing equipment.
