Productdetails:
|
| Gebruik: | Kwaliteitscontrole en testen | Transformatorcapaciteit: | 1000VA |
|---|---|---|---|
| Effectsnelheid: | 3.4m/s | Baan: | Lengte 100 mm |
| Externe maat: | 900*500*800 (W*D*H) | effecthoek: | 90 graden |
| Temperatuurtester: | Kamertemperatuur aan 200°C | Dimensie: | 650 mm × 400 × 830 mm |
| Timingbereik: | 3min ((kan willekeurig worden ingesteld) | Huidige metingswaaier: | 10pA~1mA |
| Inrichtingslading: | 2.5N | Ozon Veroorzaakte Wijze: | Ozongenerator of UVabsorptiemethode |
| horizontaal: | 500 mm * 250 mm * 500m | Specimendiktebereik: | 0~60 mm |
| Specimensgrootte: | 16mm, 615mm (d) | Waarnemer: | CIE 10° Standaardwaarnemer |
| Specificatie: | 20-88HRA, 20-100HRB, 20-70HRC | Drukresolutie: | 0.001Mpa (0,01bar of 1 PSI) |
| Testmodus A: | Kamertemperatuur | Vertoning: | Digitaal |
| Testsnelheid: | Verstelbaar | Balgewicht: | 5kg |
| Buitenafdimensie: | 95x150x105cm | Ponsen Slag: | 25 mm |
| Temperatuuruniformiteit: | ± 2 ℃ | Beheersing van de nauwkeurigheid: | ± 0,2°C |
| Markeren: | Thermal Conductivity Rubber Plastic Tester,research Rubber Plastic Tester,High Precision Rubber Plastic Tester |
||

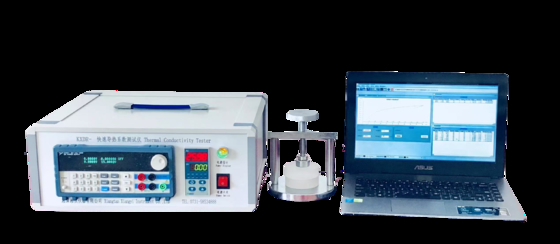

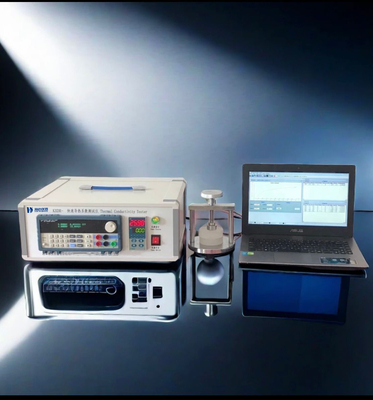

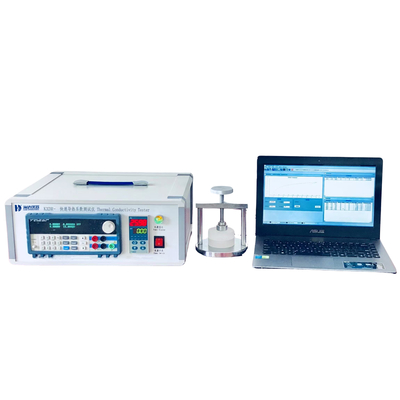

HD-KDRX-II Thermal Conductivity Tester
(Hot Wire Method)
![]()
Technical Parameters
| Item | Parameters |
| Thermal conductivity range | 0.0001~50 W/mK; resolution: 0.0001w/mk |
| Measurement relative error | ≤3% |
| Repeatability error | ≤3% |
| Temperature resolution | 0.01℃ |
| Measuring time | 2~180 seconds |
| Sample test temperature range |
Room temperature (Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements) |
| Tested samples | Plastic, soil, soft rock, liquid; paste, granule, powder and other materials |
| Sample shape | Block, flake, paste, powder, granule, colloid, liquid (round, square, irregular shape, no restrictions on shape), only a relatively flat sample surface is required |
| Sample size |
Cylindrical samples, ≥φ30 mm; Square samples, 30*30mm; Irregular samples, thickness ≥1mm |
| Control mode | By computer and software |
| Machine dimension | (L*W*H)380*400*165mm |
| Machine weight | Approx. 5KG |
| Power | AC 220V±10%, 50/60 Hz, 200W |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
